The Role of Thermal Conductive Potting Adhesive in New Energy Vehicles
In the era of rapid development of new energy vehicle (NEV) technology, the efficient and stable operation of power batteries, motors, and electronic control systems has become a core issue. Among them, thermal management is a key link determining the performance and safety of the entire vehicle. As a special functional material, thermal conductive potting adhesive is playing an irreplaceable role in maintaining the "thermal balance" of NEVs.

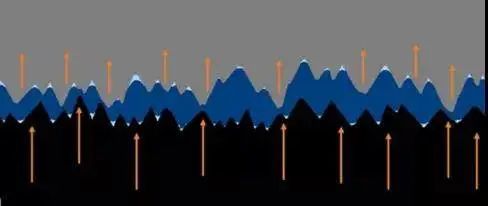

The core mission of thermal conductive potting adhesive is to solve the heat dissipation problems of electronic components and equipment. Power battery packs in NEVs continuously generate heat during charging and discharging, while motors and electronic control modules also release a large amount of heat during high-load operation. If heat cannot be dissipated in a timely manner, it will not only cause performance degradation of components but also may trigger thermal runaway, leading to serious safety accidents such as fires and explosions. Thermal conductive potting adhesive replaces air with colloid of high thermal conductivity by filling the gaps between electronic components and heat dissipation structures, building an efficient heat conduction channel, so that heat can be quickly transferred to heat dissipation components, thereby maintaining the equipment within an appropriate temperature range.

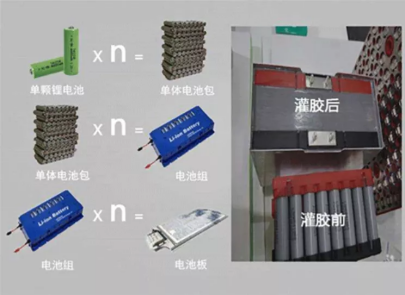

In power battery modules, the role of thermal conductive potting adhesive is particularly prominent. There are tiny gaps between battery cells and between batteries and casings. The low thermal conductivity of air will form a heat dissipation bottleneck. After being injected in liquid form and cured, the potting adhesive can tightly wrap the battery cells, eliminate air in the gaps, and at the same time, through its high thermal conductivity, evenly conduct the heat generated by the battery to the module shell or cooling system to avoid local overheating. In addition, the cured potting adhesive forms an elastomer, which can also buffer vibrations and impacts during vehicle driving, reduce damage to battery cells caused by mechanical stress, and achieve both heat dissipation and protection functions.

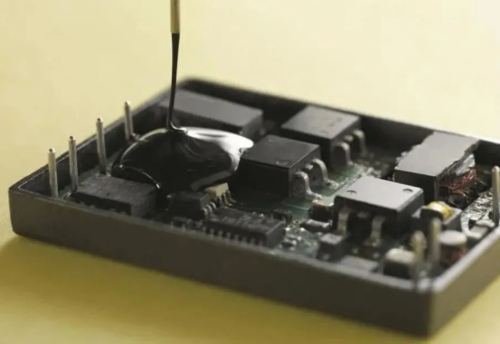

Motors and electronic control systems are another major application scenario. The drive motors of NEVs have high rotational speed and high power density, and the heat generated by windings and iron cores is extremely concentrated during operation; power devices such as IGBTs in electronic control systems are even "heat generators" and are very sensitive to temperature changes. Thermal conductive potting adhesive is filled between the motor stator and casing, and between the electronic control module and the heat dissipation base. It can not only efficiently conduct heat but also use its insulating properties to isolate electrical components, preventing the risk of short circuits. At the same time, the high and low temperature resistance of the potting adhesive enables it to adapt to extreme working conditions from -40℃ to 150℃, ensuring stable thermal conductivity and mechanical properties at different ambient temperatures.
In addition to the core functions of heat dissipation and insulation, thermal conductive potting adhesive also plays the role of sealing, moisture-proofing, and anti-corrosion. NEVs operate in complex environments and may face tests such as rain, snow, dust, and humidity changes. The closed structure formed after the potting adhesive is cured can isolate external water vapor and pollutants, protect internal electronic components from erosion, and extend their service life. As lightweight design becomes a trend, high-performance thermal conductive potting adhesives achieve low viscosity and high fluidity through formula optimization, which can accurately fill gaps in complex structures, reduce material usage, and indirectly contribute to weight reduction and energy consumption reduction of the entire vehicle.
As NEVs develop towards higher 续航 (range), fast charging, and intelligence, the performance requirements for thermal conductive potting adhesives are constantly upgrading. New-generation products not only need higher thermal conductivity (some have exceeded 2.0W/(m・K)) but also need to have low volatility, flame retardancy, and aging resistance to meet more stringent safety and environmental standards. It can be said that thermal conductive potting adhesive is not only an "invisible guardian" of heat management in NEVs but also a key material promoting their technological upgrading. It is playing an increasingly important role in ensuring driving safety and improving user experience.
